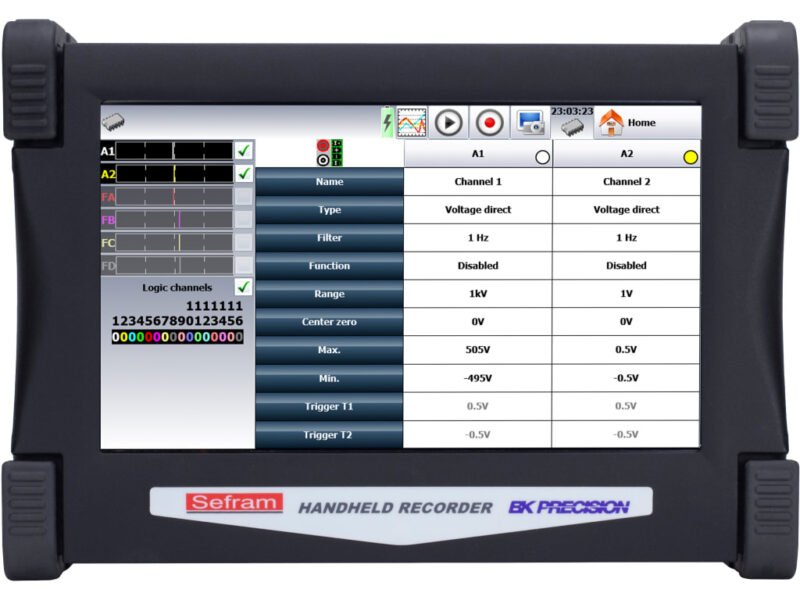

B&K Precision DAS30 – 2 Channel High Speed Multi-Function Data Recorder

Description
BK Precision DAS30 – 2 Channel High Speed Multi-Function Data Recorder
2 analog input channels
32 GB internal solid-state memory
Wide 10-inch touchscreen TFT display
Battery life up to 9.5 hours
The DAS 30/50/60 high-speed multi-function recorders feature versatile channel configurability, high-speed sampling (1 MSa/s), a wide input range (±5 mv to ±500 V), large internal solid-state memory (up to 64 GB), and 9.5 hours of battery life. Combined with the CAT III isolation rating, these instruments are well suited for applications ranging from small sensor signal logging to electrical power analysis.

The best-in-class 2 μs sampling interval in file mode lets you capture transient events with confidence. Additionally, the large built-in memory allows for data recording over longer periods of time.

Each channel can record a different signal such as voltage, temperature, current or frequency simultaneously, using a common time base. The next-generation touchscreen features unlimited data scrolling, zoom in/out function as well as drag and drop delta cursors for precision measurements.
Feature DAS30 DAS50 DAS60
Isolated Universal Channels 2 4 6
File Mode Sampling Interval 5 µs (200 kSa/s) 2 µs (500 kSa/s)
Memory 32 GB 32 GB 64 GB
110 mm Thermal Printer Factory option Factory option Factory option
2 Pt100/Pt1000 Inputs Factory option Factory option Included
Power Analysis Single-Phase Single-Phase & Delta (Aron) Single-Phase, & Delta (Aron), Star
Power Analysis Frequency 50/60 Hz 50/60 Hz 50/60 and 400 Hz
PWM Analysis – – Included
Alarms 2 2 4
Operation Highlights

Channel setup displays all parameters on a single screen

Oscilloscope like display mode with 100 kHz bandwidth

Numerical display of measured values

XY mode for plotting one varying signal versus another
The BK DAS data recorder is available in several configurations, as shown below:
Model 2 Pt100/Pt1000 Inputs
Factory Installed 110mm Thermal Printer
Factory Installed
DAS30 – –
DAS30-P – ✔
DAS30-T ✔ –
DAS30-PT ✔ ✔
DAS50 – –
DAS50-P – ✔
DAS50-T ✔ –
DAS50-PT ✔ ✔
DAS60 Standard –
DAS60-P Standard ✔
