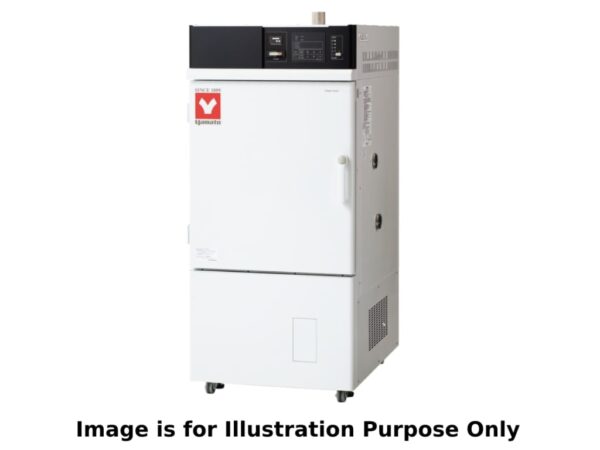

Yamato DT-411 – Forced Convection Cleanroom Oven, 91L, 220V 3 Phase, Up To 360ºC Max Temp

Description
Yamato DT-411
Internal capacity: 91L
Power source: 220V 3 phase 10A (no plug, round terminal)
Operating Temp. Range: Room temperature +30 to 360°C
Displays power consumption, CO₂ emissions, and heater manipulated variables on the control panel
Adopts anti-fouling casters which prevent wheel contamination during transportation
Forced Convection Cleanroom Oven, 91L, 220V 3 Phase, Up To 360ºC Max Temp
The Yamato DT-411 Class 100 forced convection cleanroom ovens to feature advanced temperature control and uniformity for temperature testing in a dust-free environment. Rely on the DT mechanical clean room ovens to carry out unmatched drying, sterilization, or any heating applications that require a temperature range of up to 360°C.
Method
Components
DT Series Comparison
DT411 DT611
Earth Leakage Breaker 15A 20A
Internal Dimensions WxDxH 450×450×450 mm 600×600×600 mm
External Dimensions WxDxH 700×1025×1570 mm 850×1175×1720 mm
Internal Capacity 91L / 3.21 cu. ft. 216L / 7.62 cu.ft.
Weight ~200 kg / ~441 lbs. ~270 kg / ~596 lbs.
Shelf Rest / Pitch 12 steps / 30mm 17 steps / 30mm
Power Supply 50/60Hz (V±10%) 220V 3 phase 10A 220V 3 phase 14A

(no plug, round terminal) (no plug, round terminal)
Shelf Plate / Bracket 2 pcs. / 4 pcs. 3 pcs. / 6 pcs.
