QuickLung

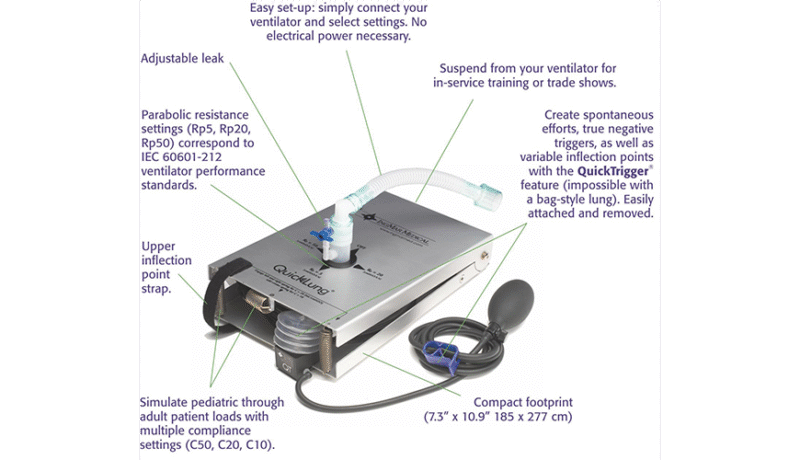

QuickLung® is an adjustable, precision test lung for ventilator testing and training. It is compact, easy-to-use, and capable of simulating a wide range of patient conditions, including patient inspiratory efforts. QuickLung is available in a an adult or pediatric model, both in calibrated or standard versions. Learn more in the “Options” section below. You can use QuickLung alone, or customize according to your needs by adding functions such as spontaneous breathing. Compatible with all ventilators, from ICU to transport.
Intended Use
- Ventilator performance verification: combine with any flow/volume/ pressure analyzer for a complete ventilator testing system
- In-service training and sales demonstration
- Basic mechanical ventilation training
-
QuickLung is a passive, one-compartment test lung
Compliance settings 50, 20, 10 mL/cm H2O Resistance settings 5, 20, 50 cm H2O /L/s Tidal volume Up to 1.2 L Dimensions 7.3” x 10.9” x 2.3”
185 x 277 x 58 mmWeight 3.5 lbs. / 1.6 kg Color Silver Carrying bag Blue QuickLung Junior
Compliance settings 15, 6, 3 mL/cm H2O Resistance settings 5, 20, 50 cm H2O /L/s Tidal volume 400 mL Dimensions 7.3” x 10.9” x 2.3”
185 x 277 x 58 mmWeight 3.5 lbs. / 1.6 kg Color Silver Carrying bag Blue
