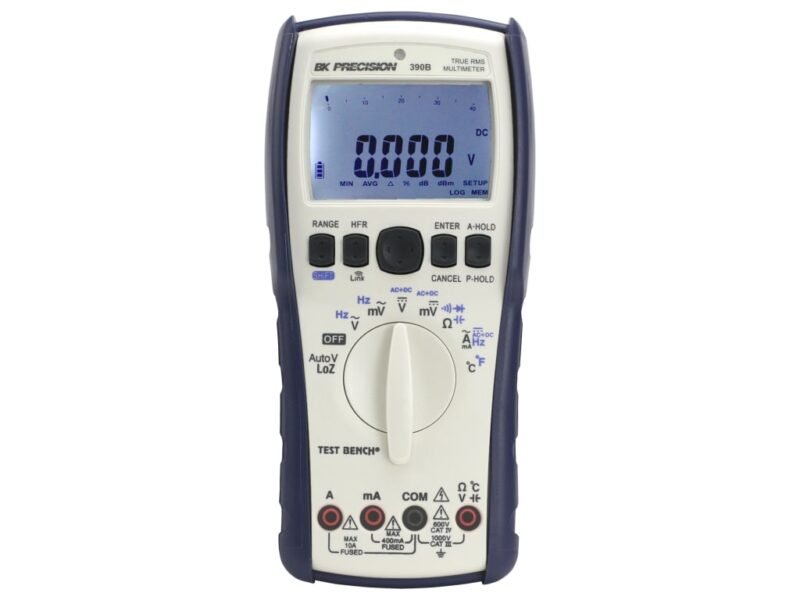

B&K Precision 390B – True RMS Digital Multimeter with Bluetooth

Description
B&K Precision 390B
DCV, ACV, AC+DC, DCI, ACI, resistance, capacitance, frequency, diode, temperature, and continuity measurement functions
True RMS AC and AC+DC measurements
Bluetooth connectivity for live data monitoring and logging from a mobile device
AutoV/LoZ mode automatically switches between AC or DC voltage measurements
40,000-count, dual display
True RMS Digital Multimeter with Bluetooth
The 390B Series True RMS multimeters offer a comprehensive solution for general purpose measurement applications. Bundled with a complete set of accessories, these multimeters provide technicians and engineers with accurate results, data logging capabilities, and measurement features for evaluating a variety of electronics or electrical systems.
Several versions available
BK offers several models in its 390B multimeter series. The chart below provides an overview of each:
Features 390B 391B 393B
True RMS AC, AC + DC voltage and current AC, AC + DC voltage and current AC, AC + DC voltage and current
DCV Accuracy ± (0.03% + 10 digits) ± (0.03% + 20 digits) ± (0.015% + 20 digits)
Display Count 40,000 40,000 100,000
AutoV/LoZ ✔ – –
Wireless Data logging ✔ – –
Auto Backlit, Dual Display ✔ ✔ ✔
Analog Style Bar Graph ✔ ✔ ✔
Relative Mode (% and Δ) ✔ ✔ ✔
Min/Max/Avg ✔ ✔ ✔
dBm/dB measurement ✔ ✔ ✔
Auto Hold, Peak Hold ✔ ✔ ✔
Data Log Capacity 40,000 readings 20,000 readings 20,000 readings
Duty Cycle – ✔ ✔
Temperature Probe ✔ ✔ ✔
Optical Isolated USB Interface ✔ ✔ ✔
B&K Precision Link Application
This meter provides advanced features including data logging measurements to the meter’s internal memory at a user-specified sampling interval. Model 390B features wireless connectivity for logging measurement data directly to a smartphone or tablet while in the field. All models in this series provide convenient measurement monitoring and recording from a PC connected to the meter’s optically isolated USB interface. Additionally, measurements stored in the meter’s internal memory can be exported using the provided PC application software.
Easy-to-read display
This easy-to-read display features an analog style bar graph to help identify measurement trends or fluctuating signals. When working in low-light environments, the auto on/off backlight adjusts for best visibility while maximizing battery life.
Dual line display capabilities enable two measurements or one measurement and a math function to appear on screen simultaneously.
High-frequency reject mode
The 390B series is equipped with an AC LPF (low-pass filter) to help reduce unwanted electronic noise when measuring AC voltage or AC frequency. The LPF can improve measurement performance on composite sine waves that are typically generated by inverters and variable frequency drives.
Set up the multimeter to measure AC voltage. Press the HFR button to enable the LPF. The multimeter will continue measuring in the chosen AC mode, but now the signal diverts through a filter that blocks voltages above 800 Hz.
