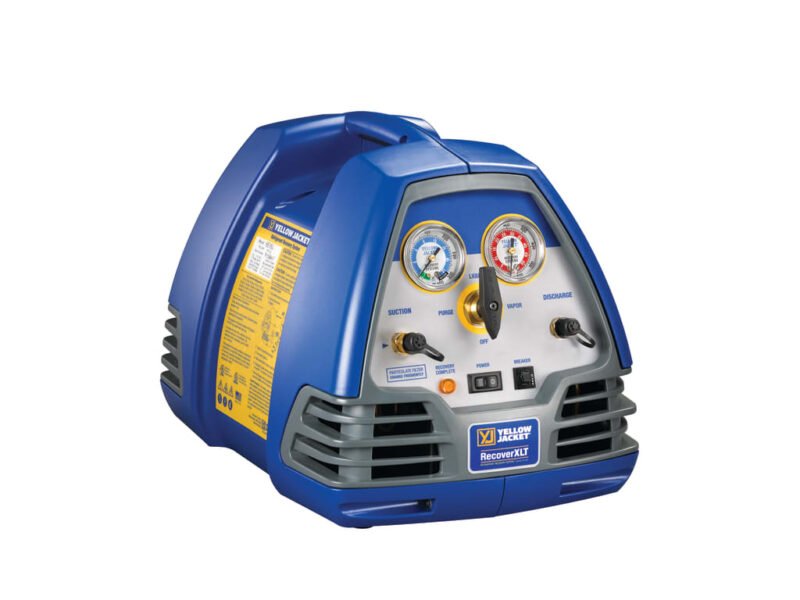

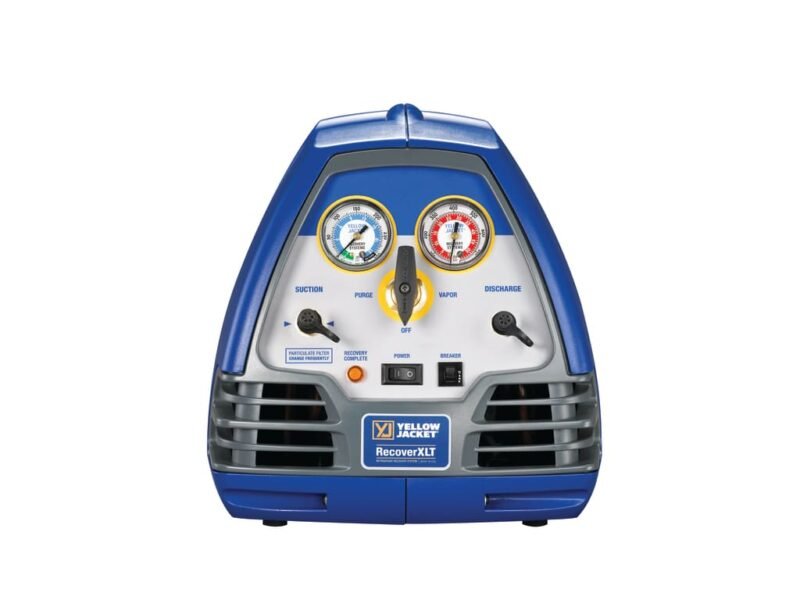

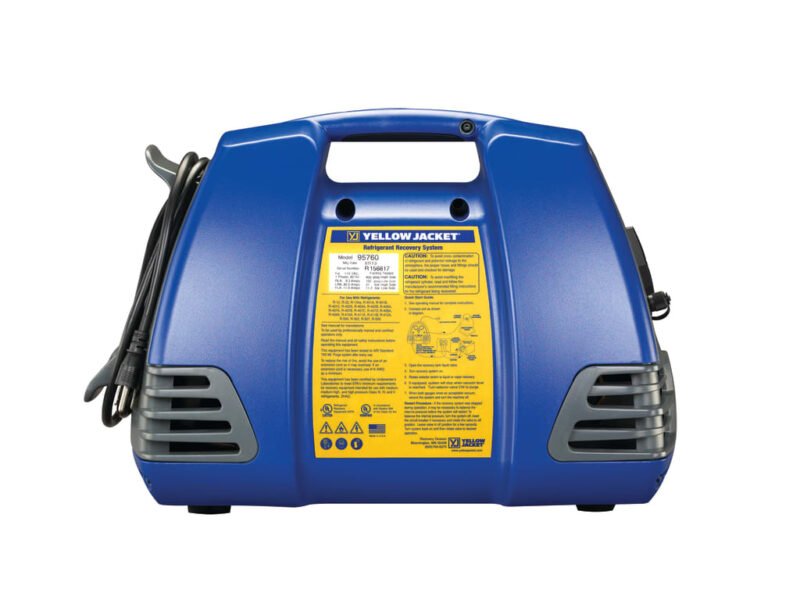

Yellow Jacket 95760 – RecoverXLT Refrigerant Recovery Machine, 115V/60 Hz

Description
Yellow Jacket 95760 – RecoverXLT Refrigerant Recovery Machine, 115V/60 Hz
Single valve control for easy changeover from liquid to vapor to purge
Constant Pressure Regulator (CPR) valve regulates refrigerant to the compressor. Eliminates the need for technician to throttle the suction valve
Advanced 1/2 hp, 3425 rpm oil-less compressor with precision valves manufactured in an ISO-9001 facility
Recovers refrigerant and shuts off when unit reaches 13″ of vacuum. Unit will automatically restart if system pressure rises
Indicator signals “recovery complete”
Fully automatic operation for fast recovery of Class III, IV and V refrigerants including R-410A, backed by the best warranty in the industry. The CPR (Constant Pressure Regulator) valve automatically reduces the pressure of the refrigerant being recovered – regardless of which refrigerant – without slugging the compressor. Turn the single control valve to “liquid” or “vapor” settings, and the machine will complete recovery while you work on other aspects of the job.
Liquid and Vapor Recovery Set Up
Liquid recovery is the fastest method, but not all equipment can handle the process
Vapor recovery is slower than liquid recovery, but is the most commonly used recovery method
Liquid and vapor recovery are performed the same way, but liquid recovery requires a connection to the high side of the system
Push/Pull Recovery Set Up
Quickly removes liquid refrigerant, but requires hose connection change to recover vapor refrigerant
Works best when recovering more than 10 pounds of refrigerant
Make sure system will allow a solid column of liquid to form, does not have a heat pump or reversing valve and does not have an accumulator
