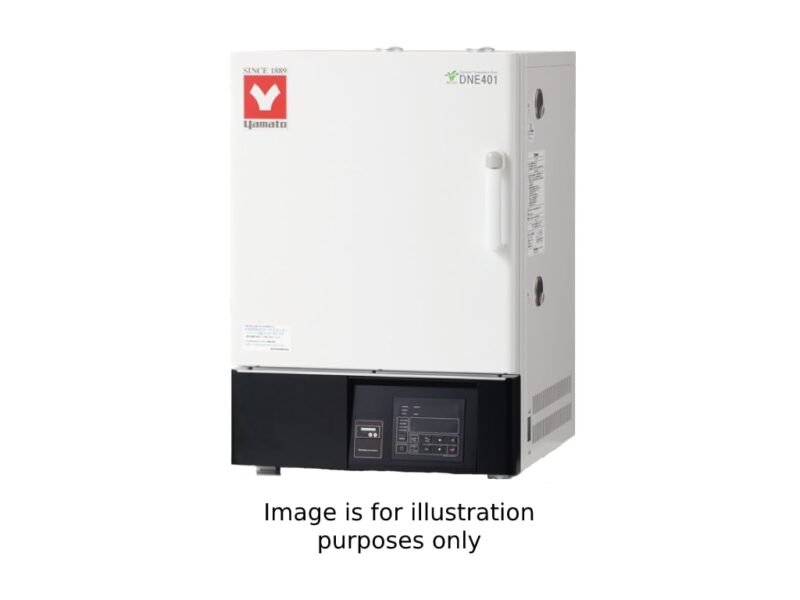

Yamato DNE-411 – Energy Saving Forced Convection Oven Programmable, 90L, 220V

Description
Yamato DNE-411
Internal capacity: 90L
Power source: 220V 5.5A (no plug, round terminal)
High precision controller allows high-performance temperature control and display of CO₂ and power discharge
Heat tightness and insulation design of the chamber achieve an energy-saving rate of about 40% at constant temperature compared to previous models
Energy Saving Forced Convection Oven Programmable, 90L, 220V
High-performance environment-friendly eco-oven that reduces power consumption significantly.

Operation and functions
Maximum temperature reaching time reduced by 15 minutes (no-load) compared to previous models
Program operation with a maximum of 99 steps, 99 patterns repeatable
Standard equipped with various support functions such as calibration offset, power failure recovery mode, save and access of user setting information, as well as other operation modes
Data acquisition from internal test device possible because of cable holes
Easy system upgrade with various option settings

Safety features
Standard equipped with various self-diagnostic functions such as independent overheat prevention device, overcurrent circuit breaker, and key lock function
DNE Series Comparison
MODEL DNE-401 DNE-601 DNE-811 DNE-911

DNE-411 DNE-611

Operating Temp. Range RT+20°C to 210°C RT+20°C to 210°C RT+15°C to 210°C RT+15°C to 210°C
Temp. Gradient*¹ 6°C (at 210°C) 8°C (at 210°C) 8°C (at 210°C) 10°C (at 210°C)
Temp. Rise Time*¹ ~60 min. ~70 min. ~45 min. ~60 min.
Heater / Insulating Material Stainless pipe heater / Glass wool Stainless pipe heater / Glass wool Stainless pipe heater / Glass wool Stainless pipe heater / Glass wool

1.1kW 1.2kW 1.2kW x 2 1.5kW x 2
Fan Motor 10W 10W 30W 30Wx2
Exhaust Port 33mm I.D. 2pcs. (top) 33mm I.D. 2pcs. (top) 33mm I.D. 2pcs. (rear) 33mm I.D. 2pcs. (rear)
Internal Dimensions*² WxDxH 450x450x450mm 600x500x500mm 600x500x1000mm 1090x500x1000mm
External Dimensions*² WxDxH 580x646x860mm 730x696x910mm 730x695x1660mm 1220x695x1660mm
Internal Capacity 90L 150L 300L 540L
Shelf Plate With Standard Load ~15kg/pcs. ~15kg/pcs. ~15kg/pcs. ~15kg/pcs.
Shelf Rest Step Number / Shelf Rest Pitch 11 steps / 30mm 13 steps / 30mm 29 steps / 30mm 29 steps / 30mm x 2
Power Source 50/60Hz AC115V 10A (with plug) AC220V 5.5A (no plug, round terminal) AC115V 11A (with plug) AC220V 6A (no plug, round terminal) AC220V 11.5A (no plug, round terminal) AC220V 14A (no plug, round terminal)
Weight ~63kg ~77kg ~92kg ~185kg
Shelf Plate / Bracket 2 pcs. / 4 pcs. 2 pcs. / 4 pcs. 4 pcs. / 8 pcs. 8 pcs. / 16 pcs.

*¹ Temperature Accuracy / Rise time Standard: Testing Machinery Association of Japan. Temperature Fluctuation/Gradient Standard: Japanese Industrial Standard. Performance data above is based on 115V or 220V AC supplied power, 23°C±5°C (room temperature), 65%RH ±20% humidity, maximum air speed (FAN setting 10), damper closed, and no process load.
*² Protrusions excluded
