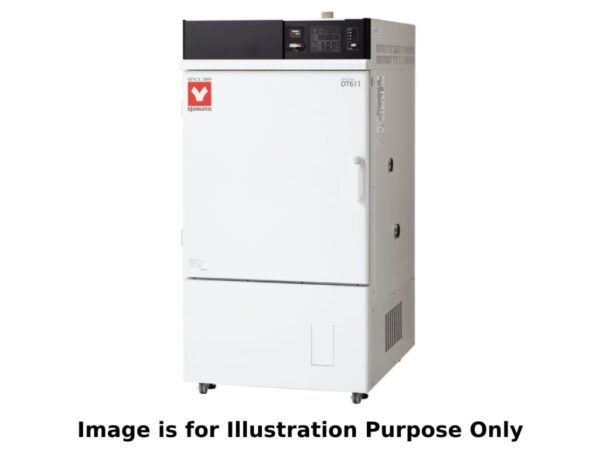

Yamato DE-611 – Forced Convection Cleanroom Oven, 216L, 220V 3 Phase, Up To 260ºC Max Temp

Description
Yamato DE-611
Internal capacity: 216L
Power source: 220V 3 phase 10A (no plug, round terminal)
Operating Temp. Range: Room temperature +30 to 260°C
Improved visibility of HEPA filter replacement timing by three-color indication
Displays power consumption, CO₂ emissions and heater manipulated variables on the control panel
Forced Convection Cleanroom Oven, 216L, 220V 3 Phase, Up To 260ºC Max Temp
The Yamato DE-611 Class 100 forced convection cleanroom ovens to feature advanced temperature control and uniformity for temperature testing in a dust-free environment. Rely on the DE mechanical clean room ovens to carry out unmatched drying, sterilization, or any heating applications that require a temperature range of up to 260°C.
Method
Components
DE Series Comparison
DE411 DE611
Internal Dimensions WxDxH 450×450×450 mm 600×600×600 mm
External Dimensions WxDxH 700×1025×1570 mm 850×1175×1720 mm
Internal Capacity 91L / 3.21 cu. ft. 216L / 7.62 cu.ft.
Weight ~200 kg / ~441 lbs. ~270 kg / ~596 lbs.
Shelf Rest / Pitch 12 steps / 30mm 17 steps / 30mm
Power Supply 50/60Hz (V±10%) 220V 3 phase 7A 220V 3 phase 10A

(no plug, round terminal) (no plug, round terminal)
Shelf Plate / Bracket 2 pcs. / 4 pcs. 3 pcs. / 6 pcs.
