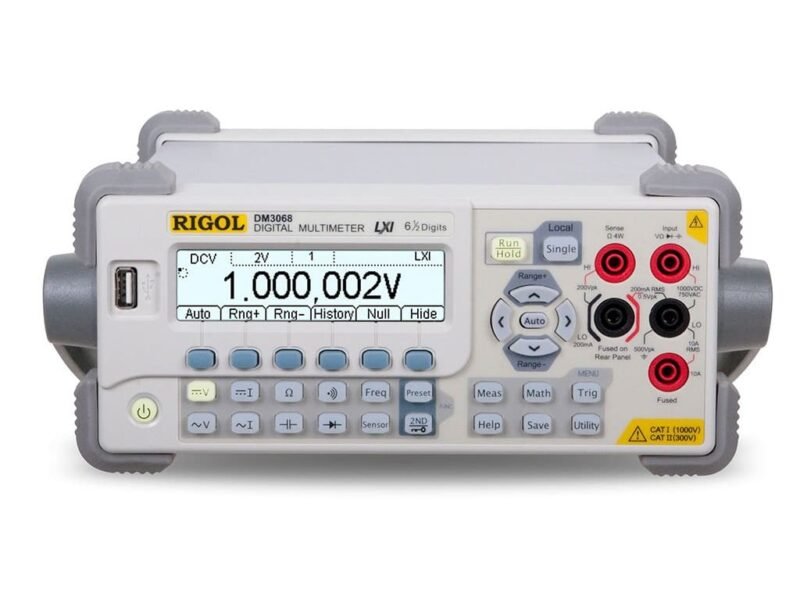

Rigol DM3068 6 1/2 Digit Benchtop Digital Multimeter

Description
Rigol DM3068 6 1/2 Digit Benchtop Digital Multimeter
Digital Multimeter
High accuracy measurements with up to 6.5 digits of resolution
Easy to measure AC signal with double display
Support multiple temperature sensors
The Rigol DM3068 is a digital multimeter designed with 6 1/2 digits readings resolution especially fitting to the needs of high-precision, multifunction and automatic measurement. It adopts many of today’s new technologies to achieve high performance, abundant features in the same class. It’s designed to aim at the requirements of the largest DMM market from the research, education, industrial electronics, consumer electronics and automotive industries with its innovative technology, industry-leading specifications, powerful measurement functions, and broad analysis capabilities.

The DM3068 can support 13 kinds of measurement functions: DC Voltage, AC Voltage, DC current, AC current, 2-wire Resistance, 4-wire Resistance, CAP, Diode, Connectivity, Frequency, Period, Any sensor and Temperature. Standard interface: USB Device, USB Host, LAN, RS-232 and GPIB.
Real 6 1/2 digits resolution
Support 2,200,000 Count which is much more lager the normal 1,200,000 Count. Support larger measure range with the same resolution.
Easy to measure AC signal with double display
Measure AC voltage/current with its frequency at the same time. The voltage/current value is displayed on the main display, the frequency is displayed on the second display.
“Any sensor” function
This function enables you to easily convert a measured physical quantity (such as pressure, flow rate and temperature) into a quantity that can be easily measured (such as voltage, current or resistance). The measure value and the converted value can be displayed on the screen at the same time.
Support multiple temperature sensors
The DM3068 can directly measure the temperature using TC (Thermocouple), RTD (Resistance Temperature Detector) and THERM (Thermistor) sensors. A temperature sensor that conforms to ITS-90 standards should be used for measurement.
Standard Capacitor measurement function
The Capacitance resolution can be up to 1pF.
Trendline display
The multimeter draws tendency graph of the measured data through which users can directly observe the variation of the measured data without other supplementary means.
Histogram display
The real-time histogram displays the distribution situation of the measurement data with the statistic AVG and SDEV value.
Statistic function
Calculates the min, max, average and mean square deviation of readings during the measurement.
