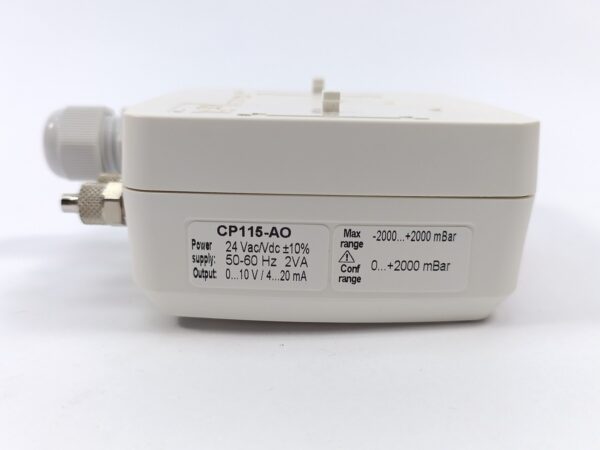

KIMO CP115-AO Differential Pressure Transmitter 23918

KIMO CP115-AO Differential Pressure Transmitter – Reliable Precision for Air and Gas Monitoring

• The KIMO CP115-AO (Model 23918) is a high-performance differential pressure transmitter specifically engineered for monitoring air and neutral gases in HVAC systems, industrial environments, and cleanroom applications. This advanced transmitter combines exceptional accuracy, user-friendly functionality, and robust construction into one compact and intelligent device.
• Featuring a clear 10-digit LCD display (50 x 17 mm), it delivers real-time readings across multiple selectable units such as Pa, mmH₂O, inWG, mmHg, daPa, kPa, hPa, and mbar, allowing for ultimate flexibility in data visualization. The device measures differential pressure in a wide range from -2000 to +2000 mbar, making it suitable for high-demand pressure control tasks.
• With ±1.5% accuracy ±3 mbar, the CP115-AO ensures precise and stable readings. The transmitter offers active analog outputs (0-10V or 4-20mA) for seamless integration with modern building automation systems, powered by a 24 Vac/Vdc ±10% supply via 3 or 4 wires.

Additional features include:

• Manual auto-zero function via push-button for convenient recalibration

• USB-mini port for programming and communication

• Dual configuration options via DIP switches or optional LCC-S software

• Durable IP65 ABS housing ensuring protection in demanding environments

• Compatible with cables up to Ø 8 mm, with dual Ø 6.2 mm process connections

• Operating temperature range: 0 to 50ºC

• Certified compliant with EMC 2014/30/EU, Low Voltage 2014/35/EU, RoHS II, and WEEE directives

Weighing only 143 grams, the KIMO CP115-AO is a lightweight, versatile, and highly dependable pressure monitoring solution trusted by engineers and technicians around the globe.
