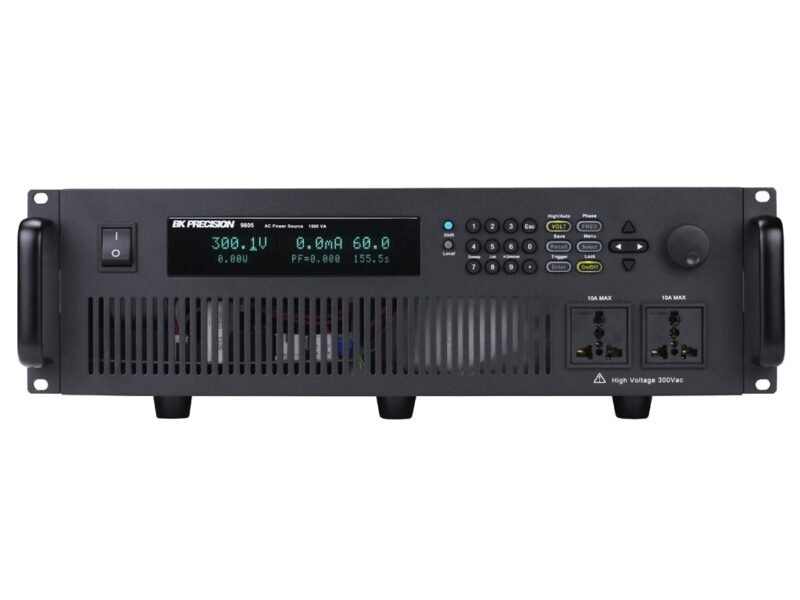

B&K Precision 9805 – 1500 VA Programmable AC Power Source

Description
BK Precision 9805 – Programmable AC Power Source
Max Voltage: 0 – 300 V
Max Current: 0 – 12 A
Max Power: 1500 VA
Standard USB (USBTMC-compliant), RS232, LAN, and GPIB interfaces
The BK Precision 9805 is both a programmable AC source and measurement tool. This fully programmable linear AC source delivers a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angles from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power, and elapsed output time.

The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.
